SEB

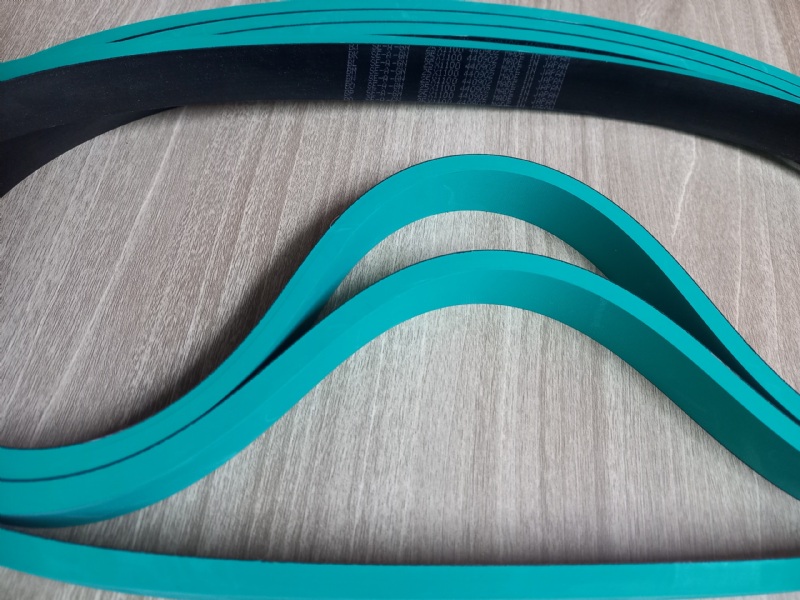

▼Seamless Belt
‧ Molded seamless belt with excellent dimensional stability.
▼High COF
‧ High coefficient of friction
‧ Excellent grip and feeding
▼Maintenance Free
‧ Excellent tension retaining properties
‧ Maintenance (belt replacement, etc.) unnecessary for a long time
▼ Appications:
‧ Folder gluer (Feeder section)
‧ Feeder belt
▼ Surface material (color):
‧ Ground side: NR (green)
‧ Glossy side: CR (black)
▼ Tension member: polyester
▼ Standard thickness (mm): 8.0
▼ Range of thickness (mm): 2~12
▼ Weight (kg/m2): 10.2
▼ Minimum pulley diameter (mm): 80
▼ Tensile strength (N/mm): 58.8
▼ Tension standard elongation (mm): 3.7
▼ Standard elongation (%): 0.5
▼ Width (mm): 7~400
▼ Length (mm): 400~1970 (depending on mold size)
▼ Temperature range (oC): -20~60
▼ Coefficient of friction:
‧ Ground side vs paper: approx. 2.0
‧ Glossy side vs steel: 0.2~0.4
▼ Features:
‧ Antistatic
‧ High grip
‧ Cushioning property

---
