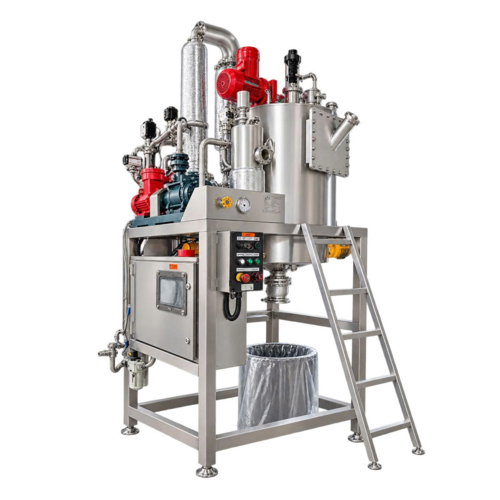

Solvent Recovery Unit

Reclaim up to 90% of your dirty solvent, to save on purchasing cost for new solvent & treatment cost for hazardous waste. Monthly savings of up to $10,000 is possible, get in touch with us for more details.

The standard treatment procedure for used solvent is manual collection and transportation to a specialized treatment plant, which comes with an expensive treatment costs, as well as potential fire & safety hazards from escaped vapour. The installation & commissioning of this Solvent Recovery Unit would form a closed loop for solvent: fresh solvent tank - cleaning equipment - recovery unit - fresh solvent tank, which would reduce the amount of top-up solvent required. In addition, distillation at -50cm Hg pressure reduces the boiling point, which results in higher efficiency. Indirect heating using thermal oil also reduces the potential of fire & safety hazards.

Technical specifications:
1. Recovery rate: 30-50 L/h
2. Purity of recovered solvent: 99%
3. Max temperature for thermal oil: 150oC
4. Max vacuum pressure: -70 cmHg
5. Power rating, heaters: 20 kW
6. Power rating, overall: 25 kW
7. Cooling water tempreature: 17oC
8. Air pressure: 6 bar
9. Power supply: 380V 3P+E
10. Dimensions: 1.5 x 1.3 x 3.3m

Video of machine in operation:
https://www.youtube.com/watch?v=BdcjNua--q0

---
