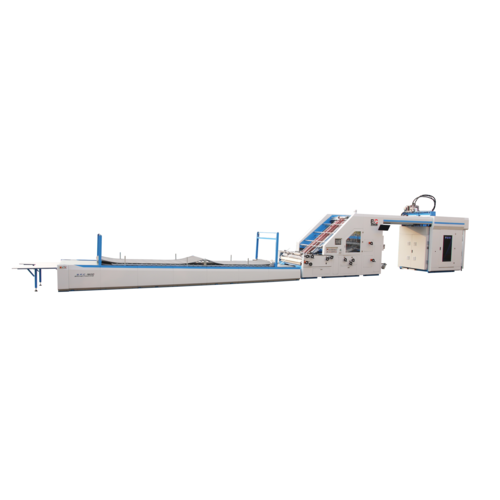

AUTOMATIC 5PLY FLUTE LAMINATOR

This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.
Laminating type: corrugated + corrugated + cardboard, corrugated + corrugated, corrugated + cardboard, cardboard + cardboard, cardboard + gray board + cardboard, etc.
Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
The bottom paper feeding part use lead edge feeding system.
Automatic thickness measure device together with two servo motors which can adjust the rollers gap automatically.
Extended 8m conveyor pressing belt with carpet which can press smoothly and ensure the sticky much better.
The multifunctional rack of the bottom paper are suitable for curved corrugated.
Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.
The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.
Special polyethylene materials on the surface of the pressure roller, glue is automatically dropped off, free scrubbing.
Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
One -click adjustment of the whole machine (just enter the paper size).
Video monitoring.

---
