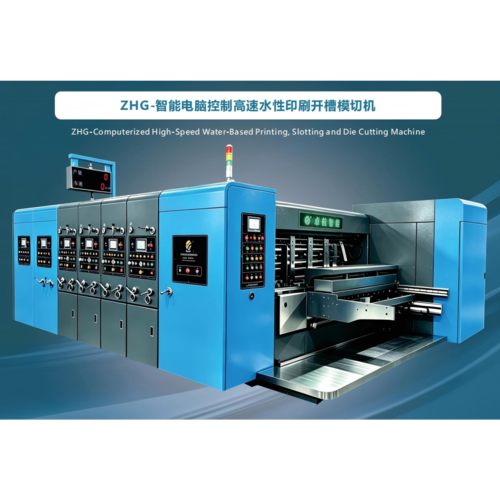

ZHG-Computerized High-Speed Water-Based Printing, Slotting and Die Cutting Machine

• The complete machine is designed and manufactured with strict standards for high efficiency, reliability and safety.
• The control panel is fitted with a 10.4‑inch HMI color touchscreen to control all functional units, featuring easy, quick operation and high precision. Each unit is additionally equipped with a 7‑inch color touchscreen for more convenient local operation. The computer control system can store 999 regular production orders to shorten order‑switching time and streamline operation.
• Memory reset function: if the machine is opened for plate wiping or partial plate replacement during operation, it will automatically return to the original working position after being closed.
• All drive rollers are made of premium steel with hard chrome plating and precision surface grinding.
• Transmission gears are machined from 60 mm‑thick high‑grade steel and heat‑treated to achieve Rockwell hardness HRC 58–62.
• All machine units can run integrally or be separated independently; an audible alarm sounds continuously during equipment movement to guarantee operator safety.
• Keyless coupling rings are adopted to reduce central abrasion and ensure accurate color registration during long‑term printing.
• The main frame wall panels are made of A3 steel plate of 60 mm thickness, tempered and precision‑processed on large CNC machining centers to deliver outstanding structural strength and machining accuracy.

---
