Description

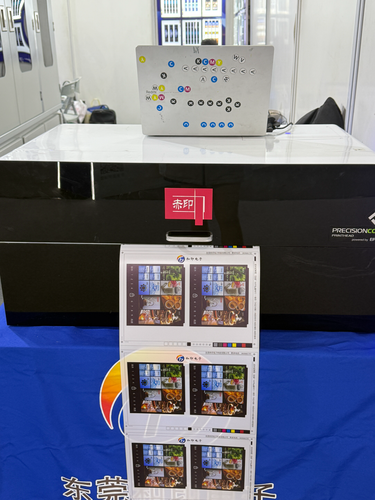

HY-300 is a compact desktop UV DTF crystal label printer developed by Dongguan Heyin Electronic. It adopts UV curing printing technology to produce transferable crystal labels on AB film. Equipped with Epson 3200HD printhead and Leadshine servo drive system, it delivers stable high-precision patterns with varnish & white ink support for 3D glossy texture. The mini body saves workshop space, perfectly matching small factories, printing shops and screen printing manufacturers with overlapping customer groups. It supports one-piece custom production and works well together with screen printing equipment.
Key Selling Points
✅ Solid CNC integrated beam + Hiwin silent linear guide
✅ High-strength cast aluminum frame, zero deformation under long-time continuous operation, low noise and smooth carriage movement.
✅ Angled nozzle layout for higher efficiency
✅ Slant nozzle design boosts printing throughput by 20% compared with traditional vertical printhead structure.
✅ Leadshine servo motor control
✅ Fast response, stable positioning, eliminates pattern ghosting & deviation.
✅ Full intelligent protection system
✅ Auto pause when media runs out; low ink reminder for large-capacity ink supply; heating carriage base plate reduces temperature & humidity environmental interference.
✅ User-friendly touch control panel
✅ Customizable brand operation interface, simple operation for new workers.
✅ Compact space-saving design
✅ Small overall dimension, easy to place in small print shops, compatible with screen printing production lines.
✅ 6-color ink configuration CMYK+White+Varnish
✅ Realize thick white ink coverage & glossy varnish 3D crystal texture, waterproof & wear-resistant finished labels.
Product Specifications
Item Parameter
Model HY-300 Desktop Crystal Label Printer
Printhead EPSON 3200HD ×1pc
Max Print Width 300mm (11.8 inches)
Printing Speed Draft Mode:5m/h; Production Mode:4m/h; High-Precision Mode:3m/h
Ink Configuration CMYK + White + Varnish
Transmission Gigabit Ethernet 1000BASE-T
RIP Software Maintop Ruiyin with Pp plugin
Working Environment Temp 24-28℃, Humidity 50-60% RH
Input Voltage AC 110/220V, 50/60Hz
Power Consumption 800W
Overall Dimension 880×700×400mm
Net Weight 62kg
Key Selling Points
✅ Solid CNC integrated beam + Hiwin silent linear guide
✅ High-strength cast aluminum frame, zero deformation under long-time continuous operation, low noise and smooth carriage movement.
✅ Angled nozzle layout for higher efficiency
✅ Slant nozzle design boosts printing throughput by 20% compared with traditional vertical printhead structure.
✅ Leadshine servo motor control
✅ Fast response, stable positioning, eliminates pattern ghosting & deviation.
✅ Full intelligent protection system
✅ Auto pause when media runs out; low ink reminder for large-capacity ink supply; heating carriage base plate reduces temperature & humidity environmental interference.
✅ User-friendly touch control panel
✅ Customizable brand operation interface, simple operation for new workers.
✅ Compact space-saving design
✅ Small overall dimension, easy to place in small print shops, compatible with screen printing production lines.
✅ 6-color ink configuration CMYK+White+Varnish
✅ Realize thick white ink coverage & glossy varnish 3D crystal texture, waterproof & wear-resistant finished labels.
Product Specifications
Item Parameter
Model HY-300 Desktop Crystal Label Printer
Printhead EPSON 3200HD ×1pc
Max Print Width 300mm (11.8 inches)
Printing Speed Draft Mode:5m/h; Production Mode:4m/h; High-Precision Mode:3m/h
Ink Configuration CMYK + White + Varnish
Transmission Gigabit Ethernet 1000BASE-T
RIP Software Maintop Ruiyin with Pp plugin
Working Environment Temp 24-28℃, Humidity 50-60% RH
Input Voltage AC 110/220V, 50/60Hz
Power Consumption 800W
Overall Dimension 880×700×400mm
Net Weight 62kg
