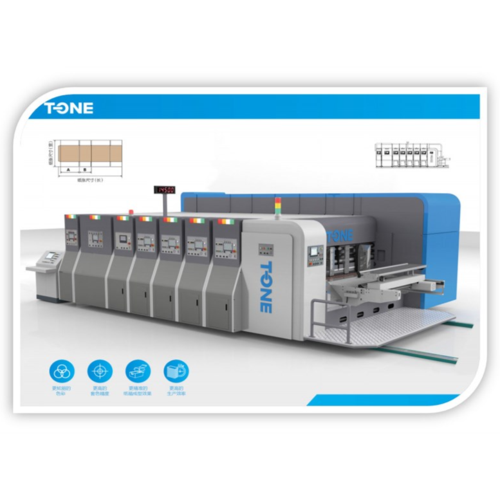

T-ONE Flexographic Printing Machine

- The entire machine features a brand-new industrial design.
- The side frames of the whole machine are thickened up to 70 mm.
- Main transmission bearings across the machine are upgraded by two specification sizes.
- Moving wheels of the whole machine are equipped with protective covers.
- The left and right side-baffling plates of the feeding section work with an automatic guide-rail adjustment structure and include protective covers.
- An independent blower unit is equipped in the feeding section.
- Quick-change rubber feeding rollers in the feeding section (no need to dismantle the oil tank).
- The feeding section features an elevated dust removal mechanism.
- Increased diameters for both anilox rollers and rubber rollers in the printing section.
- Equipped with a faster and more convenient roll-changing device.
- Box height adjustment utilizes an internal-gear shaft structure.
- Box height adjustment in the slotting section is equipped with a torque-limiting anti-collision protective device.
- Die-cutting rubber anvil cylinder with mechanical side-to-side oscillation (50 mm traverse).
- Motorized adjustment with lead-edge feeding wheels.

---
