High-speed book cover folding & fore-edge trimming machine

Functions:
GLK-320 High speed book cover folding & fore-edge trimming machine is mainly designed for paperback(of the book cover binding work finished), to complete the procedure of book block front cutting, book cover creasing and folding.
Features:
1.This machine adopts the Schneider control system, servo motor drive, work stable and reliable.
2.Machine speed can reach 4800 books/h, and can be connected with binding machine.
3.To complete book block cutting, book cover creasing folding processes one-time.

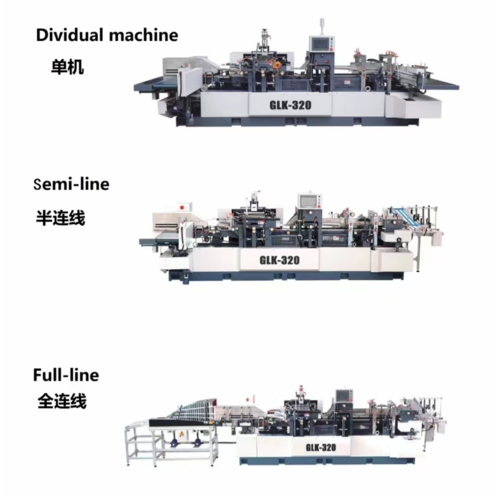

4.There are 3 models for choose(off-line; semi-line; full-line).
Technical Parameter
Max.book size(mm) 320*240
Min.book size(mm) 130*94
Max.book thickness(mm) 50
Min.book thickness(mm) 6
Max.cover folding width(mm) 160
Min.cover folding width(mm) 40
Max.mechanical speed 80 books/min
Power 5KW
Overall size(mm)off-line 4600*1920*1600
Weight(KG) 3800
Voltage(V) 380V
Air pressure 0.5Mpa
Overall size (mm)semi-line 5039*1920*1600
Overall size (mm)full-line 7514*1920*1600

---
