NONAGRAF PAD PRINTING SOLUTIONS – FROM THE LAB TO STABLE PRODUCTION

NONAGRAF PAD PRINTING SOLUTIONS – FROM THE LAB TO STABLE PRODUCTION

Pad printing is an ideal process for decorating products with curved, concave, convex or complex surfaces. However, a sharp and durable print does not come from one machine or consumable alone. It results from the precise interaction of the silicone pad, cliché, ink system, printing machine and supporting consumables.

Following the Lab to Production philosophy, Nonagraf develops integrated pad printing solutions, controlling every stage from initial testing to stable and repeatable mass production.

Silicone pads – Accurate and consistent image transfer

- Nonagraf silicone pads are manufactured from high-quality raw materials sourced from Europe. The mixing, moulding, material stabilization and final inspection processes are carefully controlled to ensure consistent hardness, elasticity and surface properties.

- Each pad is selected or designed according to the product geometry, image size, surface curvature and required contact area. The correct pad structure enables clean ink pick-up and release, minimizes image distortion, maintains accurate print positioning and provides a longer service life under production conditions.

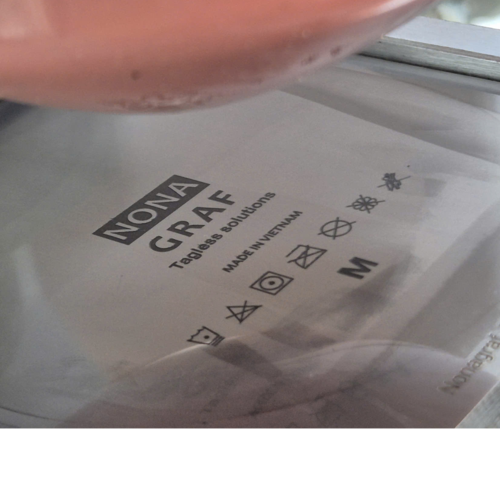

Clichés – The foundation of image definition

- The cliché directly determines image reproduction and the volume of ink transferred to the silicone pad. Nonagraf carefully controls plate dimensions, artwork positioning, line accuracy and etching depth according to the ink system and specific printing requirements.

- From fine text and technical lines to large printing areas, each cliché is optimized for accurate detail reproduction and controlled ink deposits. Precise depth control helps prevent common defects such as missing details, blurred edges, uneven colour and excessive or insufficient ink transfer. It also improves repeatability when moving from laboratory trials to mass production.

WINON – Durable pad printing machines for industrial production

- WINON pad printing machines are distinguished by their robust construction, durable engineering and stable operation in continuous industrial environments. The portfolio includes single-colour and multicolour machines, as well as automated systems featuring sealed ink cups, sliding tables, rotary tables and integrated production functions.

- Flexible configurations allow WINON machines to handle everything from small components to packaging, electronic parts, household products and industrial components. Their rigid machine structure helps maintain consistent pressure, movement and print positioning while reducing vibration, unnecessary downtime and maintenance requirements.

Coates inks – Developed for highly demanding applications

- Pad printing inks from Coates Screen Inks GmbH are engineered for difficult substrates and demanding end-use conditions, including PP, PA, TPU, TPE, glass, metals, rubber and coated surfaces.

- The portfolio includes one-component, two-component and UV pad printing systems designed to meet demanding requirements for adhesion, chemical resistance, abrasion resistance, heat resistance and long-term durability. Nonagraf also selects the appropriate thinner, hardener and additives, then optimizes the mixing ratio, evaporation behaviour and curing conditions for each application.

Compatible consumables for a stable process

- Nonagraf supplies sealed ink cups, ceramic rings, doctor blades, open ink trays, pad holders, cliché accessories, product fixtures and cleaning tools. Compatibility between these components supports cleaner ink doctoring, reduced wear and more stable operating performance.

Nonagraf does more than supply machines or consumables. We connect every component into a precise, sustainable and repeatable pad printing process—from the laboratory to mass production.

---
