Description

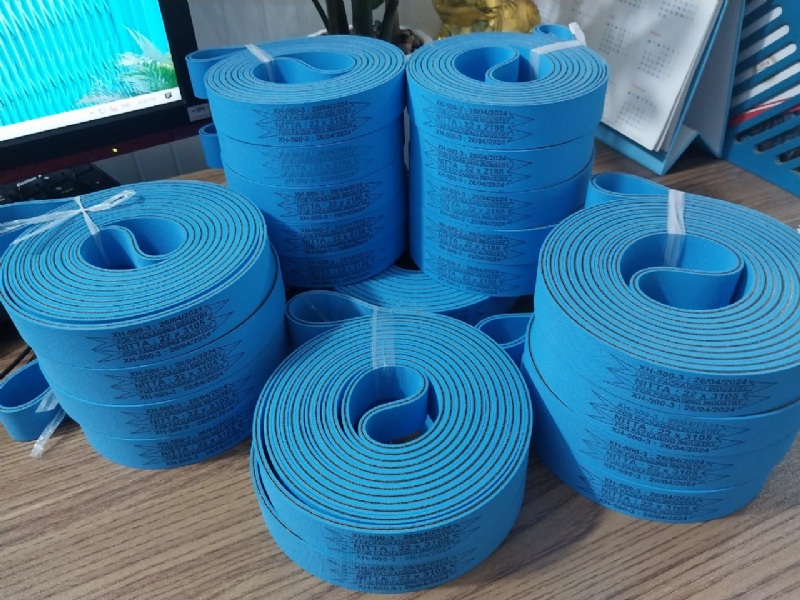

▼ XH series belts have special synthetic rubber applied to both the top and bottom covers. The rubber applied to the surface of the XH has a high coefficient of friction against paper.
▼ Optimum Coefficient of Friction and Excellent Abrasion resistance
The surface rubber features two seemingly contradictory characteristics: an optimum coefficient of friction and excellent abrasion resistance. These two characteristics enable the belt to deliver superior paper feeding for long periods.
▼ Accurate Folding Performance and Transportation Ability
With increased rigidity and precise thickness, Nitta's belts accurately fold boxes, transport them with uniform speed, and minimize failure in positioning and folding.
▼ Surface material (color): NBR (blue)-NBR (blue)
▼ Tension member: polymide
▼ Total thickness (mm): 3.0 - 4.0 - 6.0
▼ Weight (kg/m2): 3.4 - 4.3 - 7.4
▼ Tensile strength (N/mm): 150
▼ Tension standard elongation (N/mm): 3.8
▼ Standard elongation (%): 1.0
▼ Width/roll (max) (mm): 320
▼ Optimum Coefficient of Friction and Excellent Abrasion resistance
The surface rubber features two seemingly contradictory characteristics: an optimum coefficient of friction and excellent abrasion resistance. These two characteristics enable the belt to deliver superior paper feeding for long periods.
▼ Accurate Folding Performance and Transportation Ability
With increased rigidity and precise thickness, Nitta's belts accurately fold boxes, transport them with uniform speed, and minimize failure in positioning and folding.
▼ Surface material (color): NBR (blue)-NBR (blue)
▼ Tension member: polymide
▼ Total thickness (mm): 3.0 - 4.0 - 6.0
▼ Weight (kg/m2): 3.4 - 4.3 - 7.4
▼ Tensile strength (N/mm): 150
▼ Tension standard elongation (N/mm): 3.8
▼ Standard elongation (%): 1.0
▼ Width/roll (max) (mm): 320
