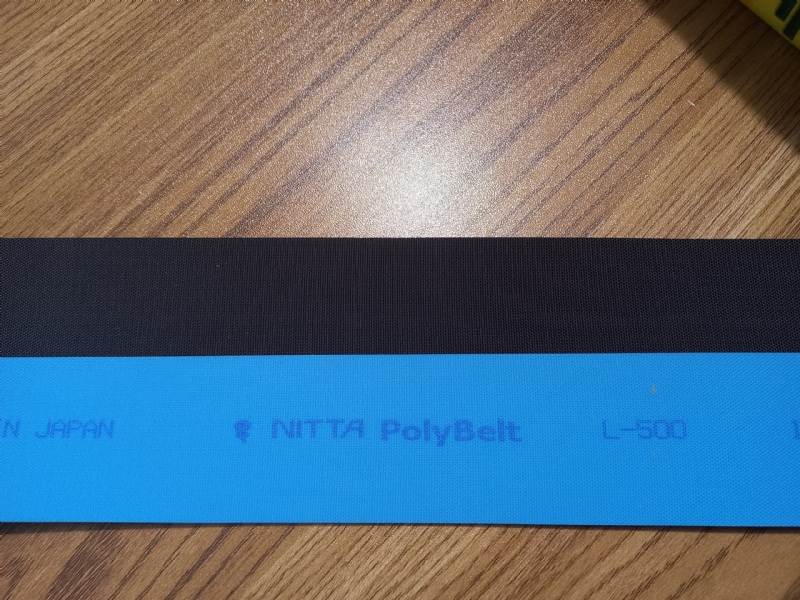

POLYBELT

▼High Strength, long life
High flexibility and rugged design for heavy-duty applications. Nylon core accommodates shock loads, and wide choice of covers provide abrasion resistance, giving long, dependable service.
▼Electrically Conductive
Materials with anti-static properties are used in specific layers to provide permanent conductivity, eliminating build-up of electro-static charges.
▼Environmental Resistance
Selected materials are not susceptible to oil contamination. They demonstrate high energy efficiency and maintain high friction resistance. Covers and nylon core are designed for printing and paper processing with high tear resistance in folder, sheeter and finishing line paper jams.
▼ Surface material (color): NBR (blue) - NBR (black)
▼ Tension member: polymide
▼ Total thickness (mm): 1.55
▼ Weight (kg/m2): 1.8
▼ Minimum pulley diameter (mm): 50
▼ Tensile strength (N/mm): 150
▼ Tension standard elongation (mm): 7.5
▼ Standard elongation (%): 2.0
▼ Width/ roll (max) (mm): 325

---
