Description

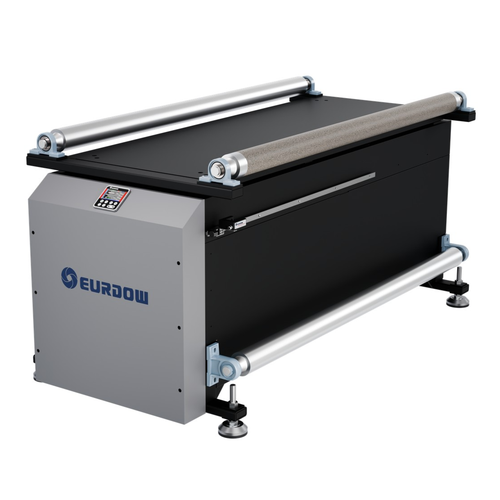

An independent guiding unit installed directly after the unwind, developed for wide-format digital presses.
- Standard web widths 1200, 1300 and 1500 mm; frame width and roller set made to order.
- Corrects the web before it reaches the print head, so registration stays stable across the full width.
- Ultrasonic, infrared or CCD sensing to suit the material.
- Control accuracy 0.1 mm, response time 2 ms; 2500 N actuator handles heavy wide-web rolls.
- Supplied complete and pre-commissioned as a single unit.
- Standard web widths 1200, 1300 and 1500 mm; frame width and roller set made to order.
- Corrects the web before it reaches the print head, so registration stays stable across the full width.
- Ultrasonic, infrared or CCD sensing to suit the material.
- Control accuracy 0.1 mm, response time 2 ms; 2500 N actuator handles heavy wide-web rolls.
- Supplied complete and pre-commissioned as a single unit.
