Description

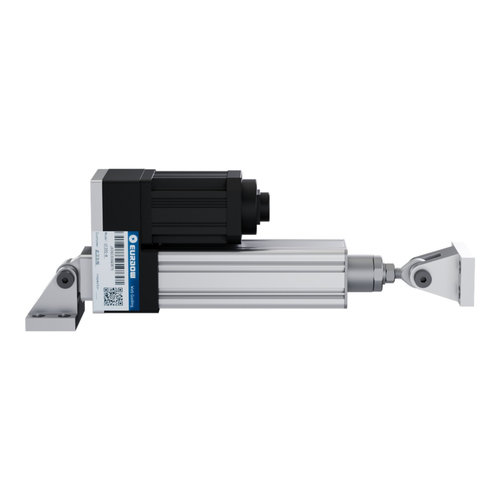

The electric actuator that moves the guiding frame. Five stroke ratings cover everything from narrow label webs to wide-web converting lines.
- Rated thrust 2500 N, speed 38 mm/s, across the whole range.
- WU2000-50 / -100 / -150 / -200 / -260, giving strokes of +/-25, +/-50, +/-75, +/-100 and +/-130 mm.
- Built-in electronic brake holds position when the line stops.
- Built-in position feedback, so the controller always knows the true frame position.
- Sealed housing for a printing and converting environment.
- Rated thrust 2500 N, speed 38 mm/s, across the whole range.
- WU2000-50 / -100 / -150 / -200 / -260, giving strokes of +/-25, +/-50, +/-75, +/-100 and +/-130 mm.
- Built-in electronic brake holds position when the line stops.
- Built-in position feedback, so the controller always knows the true frame position.
- Sealed housing for a printing and converting environment.
